Ripple - Ring Ø700

IP20 Dimmbar:

Downloadable files

3D Model
  • Ripple 700.3ds
  • Ripple 700.stp
Silhouette
  • Ripple-700.jpg
Instructions
  • Y513001304A_Ripple_50-70-90.PDF
  • Y513001532A FOGLIO ISTRUZ RIPPLE ACCESSORY.pdf
3D BIM Revit
  • Artemide Ripple EN.zip
  • Artemide Ripple EN_Low Version.zip
IES Europe
  • 2061010A.IES
  • 2061010A_650mA EU.IES
IES USA
  • 2061010A.IES
  • 2061010A_650mA EU.IES
LDT File
  • 2061010A.LDT
  • 2061010A_650mA EU.LDT
LDT PDF
  • 2061010A.PDF
  • 2061010A_650MA EU.PDF
FUNKTIONEN
  • Produktcode: 2061010A
  • Farbe: White
  • Installation: Pendelleuchte
  • Material: Heat-conducting moulded plastic
  • Serie: Design Collection
  • Anwendungsbereich: Innenbeleuchtung
  • design: BIG - Bjarke Ingels Group
LUMINAIRE
  • Watt: 50W
  • Lichtstrom (lm): 3339lm
  • CCT: 3000K
  • Efficiency: 51%
  • Efficacy: 66.77lm/W
  • CRI: 90

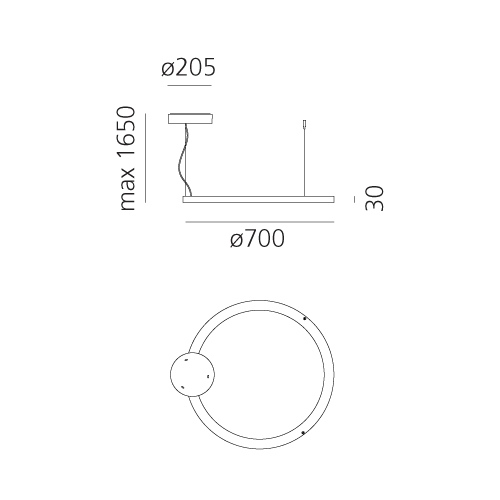

DIMENSION
  • Höhe: 30 mm
  • Durchmesser: 700 mm
  • Durchmesser Fuß: 205 mm
  • Max Höhe von der Decke: 1650 mm
Anmerkungen

To obtain the same luminous flux in case of compositions with several Ripple of different sizes side by side, set the drivers as follows:

Ripple 500 - 20W
Ripple 700 - 29W
Ripple 900 - 38W

ZUBEHÖR
Acoustic Diffuser Ø700mm - h200mm
2073120A
Acoustic Diffuser Ø700mm - h400mm
2073020A
Acoustic Diffuser Ø700mm - h600mm
2073220A
